Vestaboard Countdown

Background #

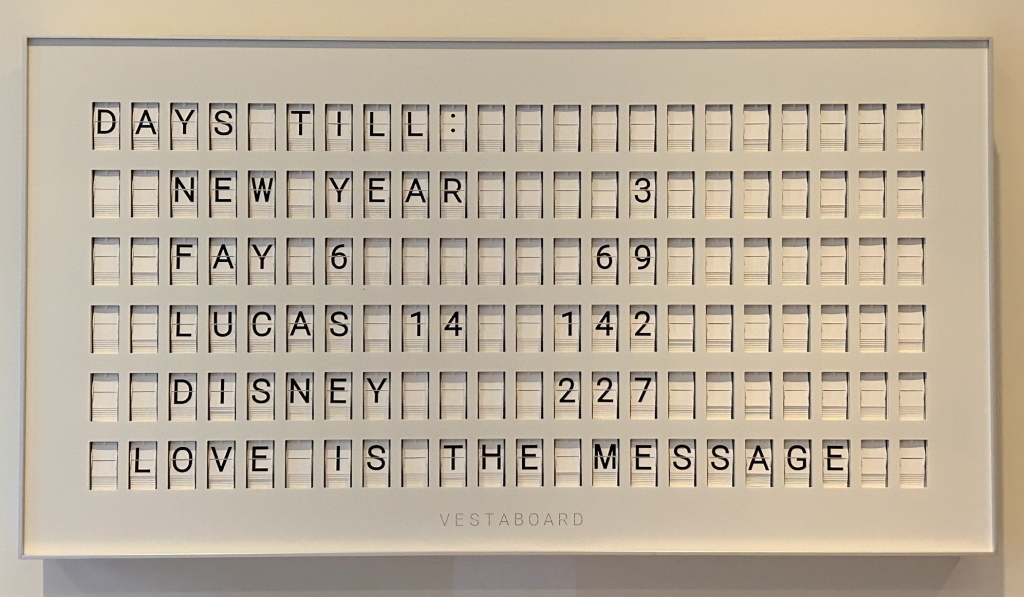

Right after summer I learned that Vestaboard was releasing a new white edition of their marvelous (but quite pricey) smart display using classic split flat technology. This board is akin to what you would find in Dutch train stations in the olden days. I decided to take the plunge and ordered one. It arrived a few weeks before Christmas and I was able to set it up in time for the holiday to tinker with.

The board comes with an app that is easy to use but lacks automation features. In order to automate messages on the board, you have to subscribe to a premium service for nearly $100 a year, which I find unacceptably high. Sure, it includes premium content as well from 3rd party providers, but I am not interested in that. I just want to be able to update the board with my own content at regular intervals.

The Goal #

So with this coding project my goal was to create a countdown to certain events on our Vestaboard. I wanted to be able to set the date and time of the event and have the countdown display the days until the event. I also wanted to find a way for my family members to easily modify the list of events and their dates without my direct involvement.

The Solution #

Vestaboard has a local API that allows you to update the contents of the board. I created a cron job that runs once a day and loads the content of a Google Sheet. The Google Sheet contains the list of events and their dates. The cron job then updates the Vestaboard with the countdown in number of days until each event.

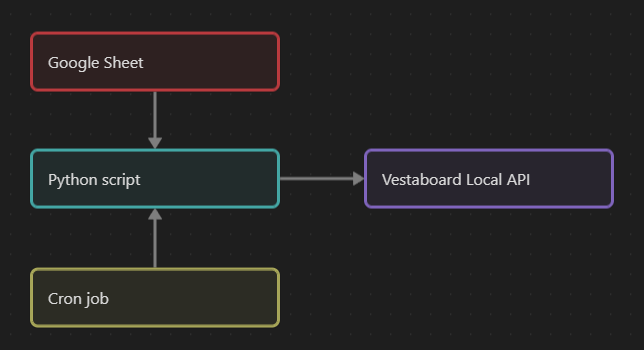

So step-by-step:

• Google sheet with list of events and their dates
• Python script that reads the Google sheet and calls the local API
• Cron job that runs the Python script once a day

Vestaboard API #

First things first: Vestaboard also has a cloud-based API, but I like to use local APIs as much as possible. This removes reliance on Vestaboard’s servers and allows me to update the board even if their services are down. The API is very simple and allows you to read and write the contents of the board. The API is documented here: https://docs.vestaboard.com/local.

To make use of the Local API, you have to request an API token using this form. You will then have to wait for an approval email from Vestaboard with the local API token in it, in plain text. I find this manual process a bit silly: The cloud-based API credentials can be created in the developer portal but the local API requires a manual request. Perhaps this manual process is temporary: I hope Vestaboard will add the ability to create and maintain local API credentials in the developer portal.

Google Sheet #

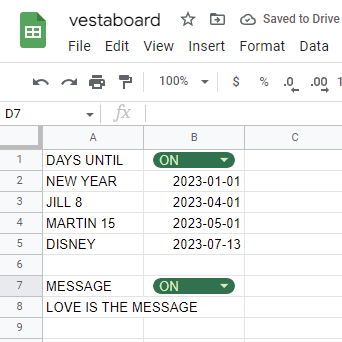

To allow my family members to update the list of events, I created a Google Sheet that they have access to. The sheet contains the list of events and their dates, a flag to switch on and off the display of these events, and a message to display with a flag as well.

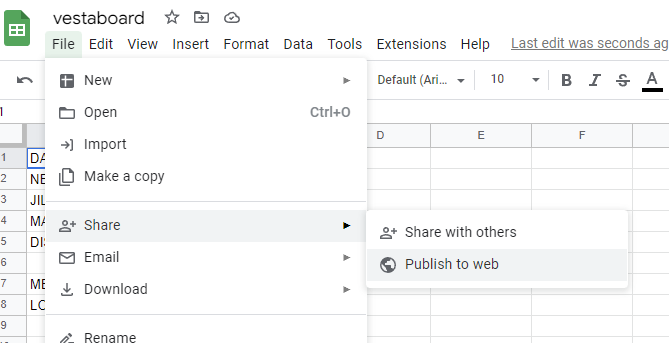

Sheets can be published to the web and can be accessed using a public URL. To do this, go to the File menu, then Share and Publish to web. Then on the dialog that opens just click “Publish” as the default settings are fine. A URL will be generated that you can use to access the sheet.

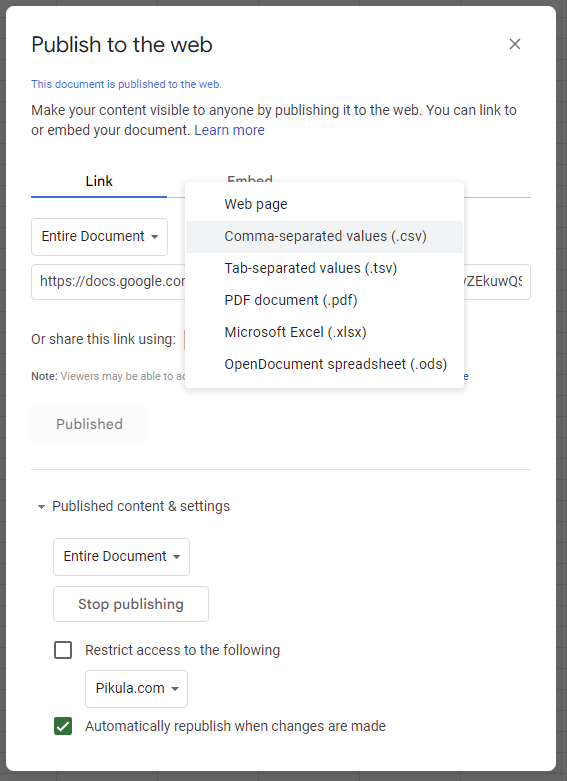

After publishing the sheet, you can revising the same dialog and select Comma-separated values (.csv) as the format. This will generate a URL that you can use to access the sheet in CSV format. This is the URL that I use in my Python script.

Python script #

I am using Python to create the cron job. It calls the published Google Sheet and reads its contents. Then I iterate over the lines and form a list of events (and an optional message). The total number of lines that can be displayed is six, so I append empty lines if needed.

The Vestaboard local API expects not simply ASCII lines but instead only accepts a string like this with specific character codes:

[[4, 1, 25, 19, 0, 20, 9, 12, 12, 50, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 6, 1, 25, 0, 32, 0, 0, 0, 0, 0, 0, 29, 34, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 12, 21, 3, 1, 19, 0, 27, 30, 0, 0, 27, 27, 27, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 4, 9, 19, 14, 5, 25, 0, 0, 0, 0, 27, 35, 32, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 12, 15, 22, 5, 0, 9, 19, 0, 20, 8, 5, 0, 13, 5, 19, 19, 1, 7, 5, 0, 0]]

To build up these lines I make use of the Python library Vestaboard and specifically its convertLine method. This method takes a string and converts it to the correct character codes. I then use the urllib.request library to call the Vestaboard local API and update the board. I would have used the Vestaboard library, but it does not support the local API (yet).

Cron Job #

Finally, I created a CRON job that runs the Python script once a day. I am using crontab on my local Intel NUC.

I also created a Flask app that allows me to run the script on-demand. This allows me to update the board without waiting for the cron job to run.

Source Code #

I published all the source code here in a GitHub repository:
https://github.com/victorp13/vestaboard-countdown

First we import the libraries we need, and the config file:

import csv, urllib.request, os
from datetime import date, datetime
from vestaboard.formatter import Formatter
import config

URL = config.googlesheets_url

Then we define the function that will calculate the number of days until a future date:

def days_until(futuredate):
    futuredate = datetime.date(datetime.strptime(futuredate, "%Y-%m-%d"))
    return abs((futuredate - date.today()).days)

Next we define the function that will update the Vestaboard. First we read the CSV file from the Google Sheet, and define variables that will keep track of Events:

def update_vestaboard():
    response = urllib.request.urlopen(URL)
    lines = [l.decode('utf-8') for l in response.readlines()]
    cr = csv.reader(lines)

    lineNum = 0
    state = 'START'
    showEvents = False
    showMessage = False
    events = []
    message = ''

Then we loop over the contents of the CSV file and build up the list of events and the message. Note that the CSV file has flags for displaying the Events and Message, so we only add them to the list if the flag is set to ON:

    for row in cr:
        lineNum += 1
        match row[0]:
            case "DAYS UNTIL":
                state = 'DAYS UNTIL'
                if (row[1] == 'ON'):
                    showEvents = True
            case "MESSAGE":
                state = 'MESSAGE'
                if (row[1] == 'ON'):
                    showMessage = True
            case default:
                match state:
                    case 'DAYS UNTIL':
                        if (showEvents and row[0] != '' and row[1] != ''):
                            events.append([row[0], str(days_until(row[1]))])
                    case 'MESSAGE':
                        if (showMessage and row[0] != ''):
                            message += row[0]

We then create the actual lines that need to be sent to the Vestaboard. We first create the lines for the events, and then the line for the message. Note that we use the convertLine method from the Vestaboard library to convert the string to the correct character codes:

    lines = []

    # Create the list of event lines to send to the Vestaboard
    if showEvents:
        lines.append(Formatter().convertLine('DAYS TILL:', justify='left'))
        for event in events:
            lines.append(Formatter().convertLine('  ' + event[0].ljust(10) + event[1].rjust(3), justify='left'))
    # Create the message line and add it to the lines to send to the Vestaboard
    if showMessage:
        for i in range (5 - len(lines)):
            lines.append(Formatter().convertLine(''))
        lines.append(Formatter().convertLine(message, justify='center'))

At the end, because the Vestaboard supports 6 lines in total, we need to add empty lines if there are less than 6 lines:

    # Add blank lines to the end of the lines to send to the Vestaboard if there are less than 6 lines
    if len(lines) < 6:
        for i in range(6 - len(lines)):
            lines.append(Formatter().convertLine(''))

Finally, we send the lines to the Vestaboard local API using the urllib.request library:

    req = urllib.request.Request('http://' + config.vestaboard_ip + ':7000/local-api/message', method="POST")
    req.add_header('X-Vestaboard-Local-Api-Key', config.vestaboard_key)
    data = str(lines)
    data = data.encode()
    r = urllib.request.urlopen(req, data=data)

Config file #

You will need to add a config.py file with the following contents:

googlesheets_url='https://docs.google.com/spreadsheets/<really_long_string>/pub?output=csv'
vestaboard_ip='<local_ip_of_vestaboard>'
vestaboard_key='<local_api_key>'

Mind that you pick the CSV format of the Google Sheet.
